Application Field:
l Inverter power supply transformer
l Plating power supply transformer
l Welding transformer
l Switching mode power supply transformer
Characteristics:

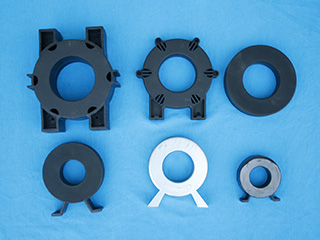

l Made of iron-based nanocrystalline strip.
l High saturation magnetic induction intensity can greatly improve the working point of the transformer, reduce the weight and the size of our power.
l High permeability and low coercive force can improve the power efficiency.
l Low loss, reduce the temperature rise of the transformer.

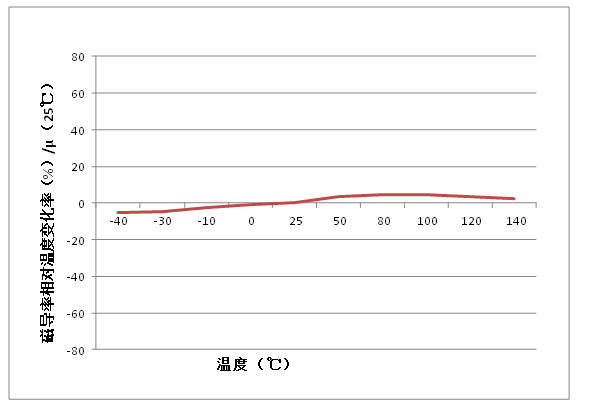

l Good stability, allows operational temperatures from -55--130℃.
Material properties：
Saturation magnetic induction Bs（T） | 1.2 |
Coercivity Hc （A/m） | <2 |
Curie temperature Tc（℃） | 570 |
Crystallization temperature Tx（℃） | 500 |
working temperature℃ | -55～130 |

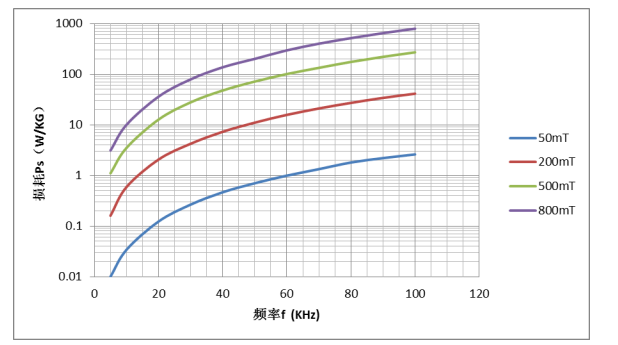

Loss P（20kHz，0.5T），（W/kg） | <20 |
