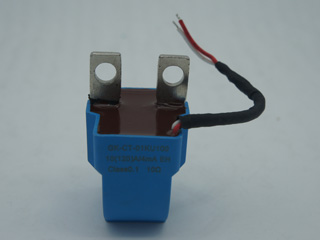

Key Features/Application：
l overt alternative current or a half-wave rectifier DC current to accurate low-current
l Suitable for GB/T17215.321 Electricity meters with DC and Even harmonic requirements
l Encapsulated with epoxy resin, Power-frequency Withstand Voltages: 4000V/1min,
Insulation Resistance: ≥1000MΩ/500Vdc;
l Working Frequency: 50Hz～400Hz;
l Operating Temperature: -40℃～85℃.
l Comply to JB/T10665-2016、IEC61869-2-2012

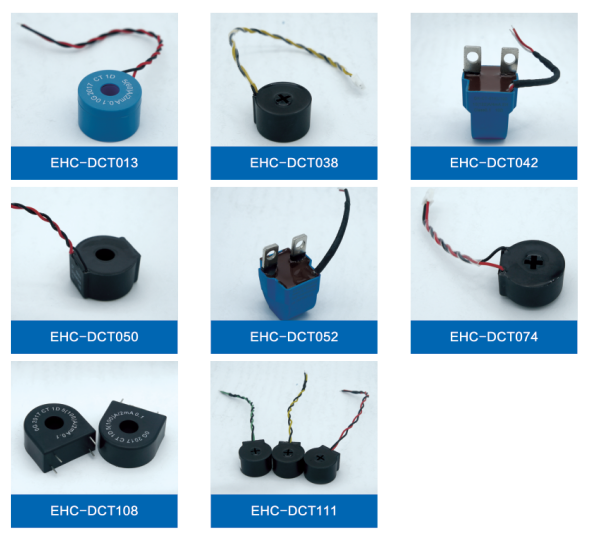

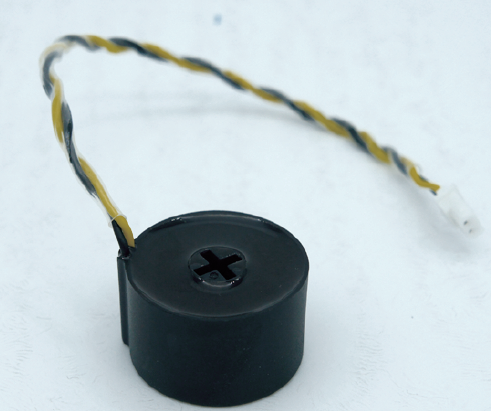

Only few typical products of this series are shown in the following pages. EHC is capable of making other customized design and manufacturing per user request.
Specifications：
Model | Current Ratio | Rated Burden（Ω） | Accuracy Class |
5(60)A/2mA | 5 10 20 | 0.05 0.1 | |
10(60)A/4mA | |||
5(100)A/2mA | |||
10(100)A/4mA | |||
10(120)A/4mA |

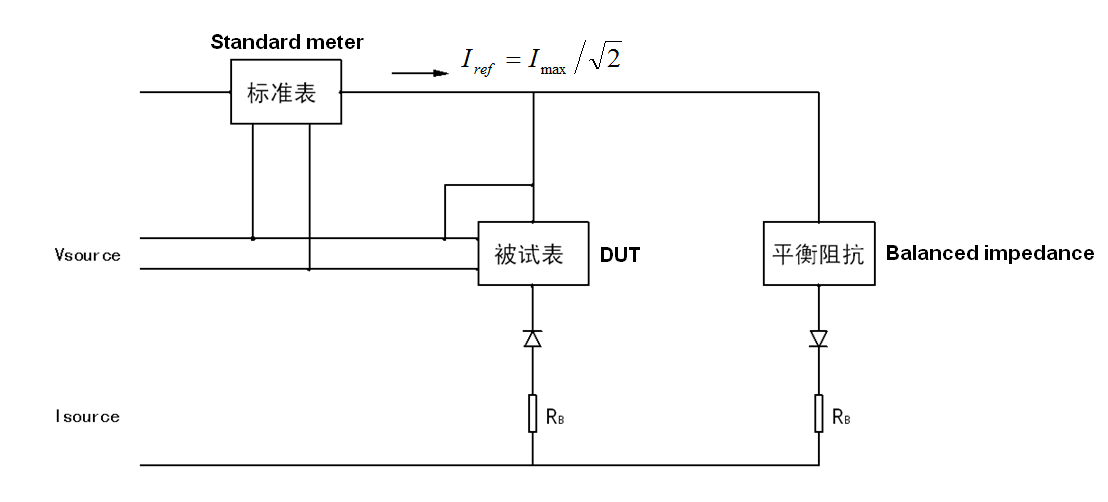

Half-Wave Rectifier (DC and Even harmonic) Test
In order to ensure the accuracy of measurement, the balanced impedance should be equal to the impedance of DUT. The same type of instrument as DUT is strongly recommended.
Half-Wave current contains Direct DC component, Fundamental harmonic and Even harmonic, the error of the Class 1 meter should be less than 3% and the error of Class 2 meter should be less than 6%.
